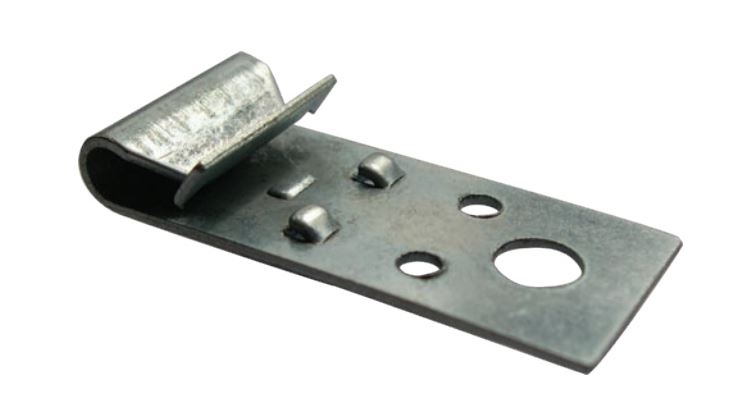

Vertical Flange Clamp

Vertical Flange Clamp

Product Code:403161

Purlin hanger incorporating threaded rod hanger. Design to hang threaded rod from Z purlins.

Fast, easy installation.
High Strength.
For fixing lighting or suspended wire to steel profiles.

FEATURES & BENEFITS:
• All Steel.
• Series of strong barbs grip the flange.
• Angle trim may, for suspended ceilings, be bolted through the larger hole.

MATERIALS:
• Spring Steel.
• Zinc Passivated.

£25.51 ex VAT

  • Product Code403161
  • CodeVF1
  • Flange size (mm)1 - 5
  • Static load (kg)72

INSTALLATION GUIDE:
1. Place hook profile over the vertical of the purlin.
2. Tap in to place with a hammer.
3. Where possible we recommend using a WHSDZ12 to secure the clip.
4 Connect drop wire or chains through the eye of the clip.

TECHNICAL DATA:
Mean Ultimate Failure

Recommended Tensile*
0.74kN
Load
0.19kN

* The above recommended load is when the clip is not fixed by a self drilling screw. When fixed with a self drilling wafer head screw higher tensile values can be achieved. We highly recommend that site testing is undertaken so as an accurate recommended load can be calculated.
